The static refrigerated cabinet for gelato
Labor Plus

Are you interested in this product?

Refrigerated storage at the service of a range of cabinets for professional kitchen in different capacities with single and double doors. Ventilated or static refrigeration and positive or negative temperature. Design for everyday use; 80 mm insulation thickness for greater energy savings and ergonomics designed to ensure comfort in set-up, handling and everyday maintenance. Committed to the environment, refrigerant gases and natural insulation at the heart of performance. Energy saving and respect for the environment are the focus of performance.

Internal setup

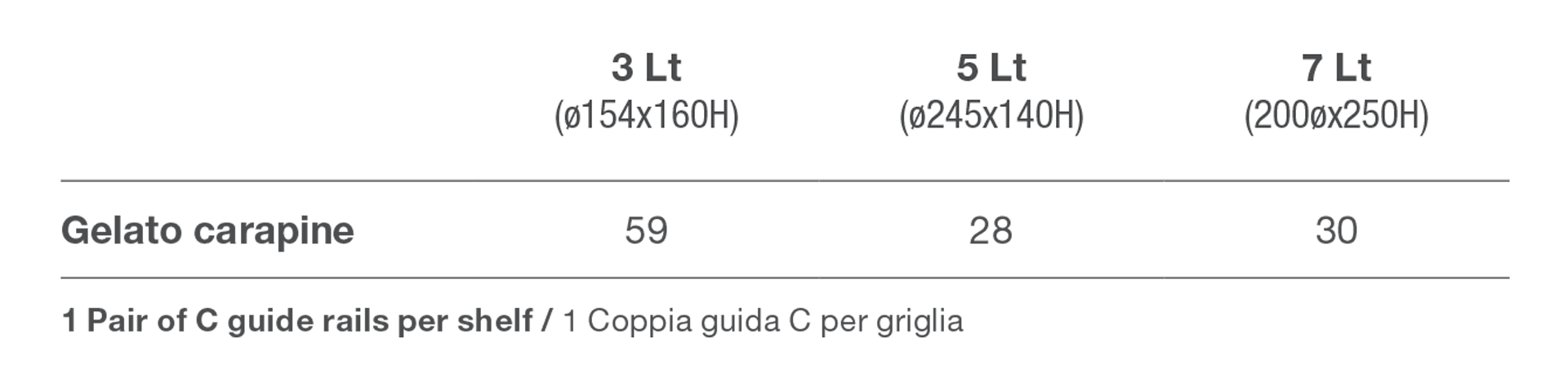

The standard equipment includes 4 stainless steel racks (10 positions - pitch 130 mm), 5 chrome-plated shelves (530x720 mm) and 5 pairs of stainless steel C guide rails (724 mm) with maximum load of 60 Kg per shelf.

Labor Plus

The static refrigerated cabinet for gelato

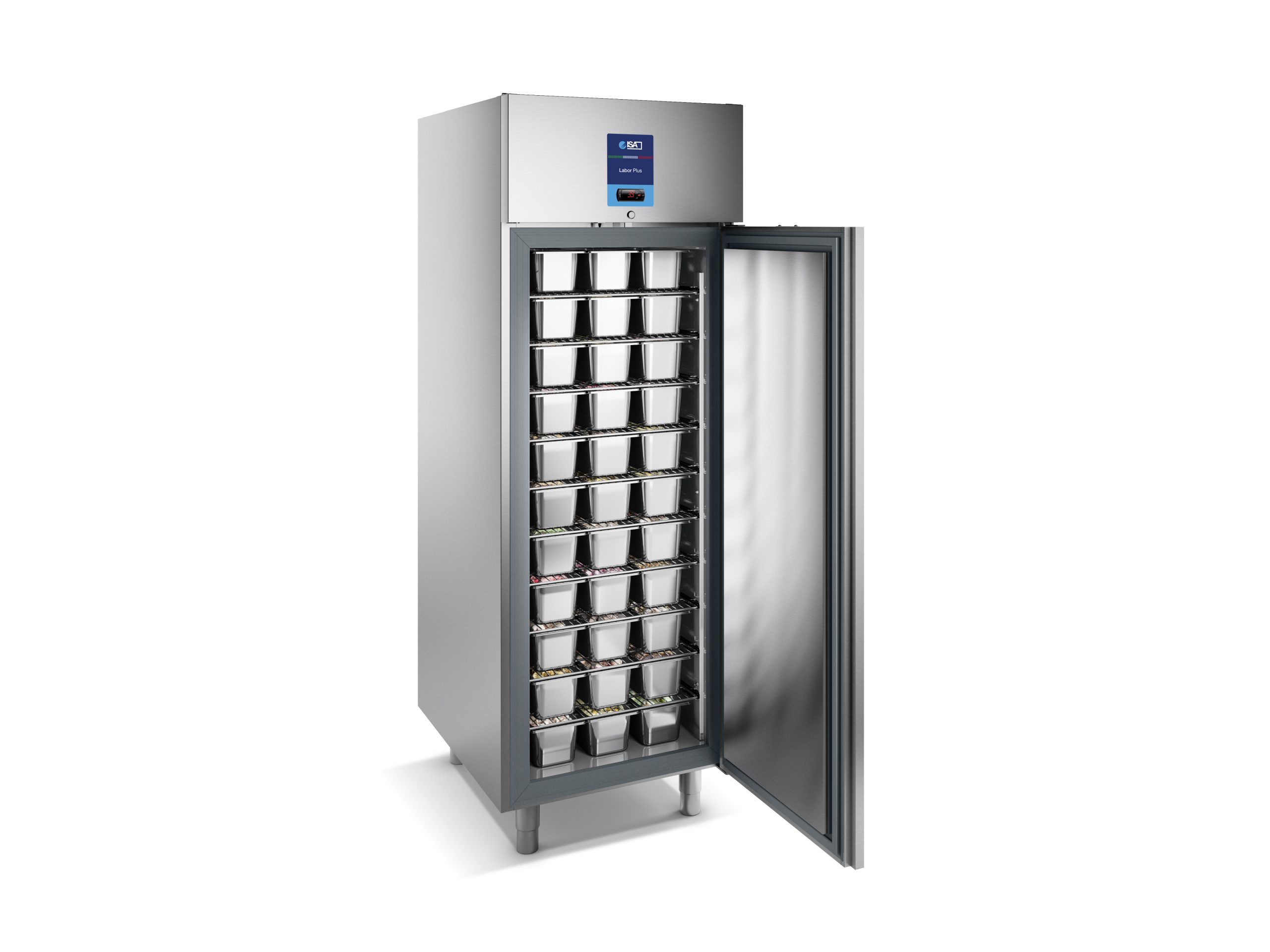

Labor is the refrigerated storage cabinet for gelato, with a temperature range of -18/-15 °C and natural refrigerant gas R290. Characterized by its fan- assisted static refrigeration, it has been designed to ensure the correct preservation of the creations of master gelato makers during the entire production cycle. Ideal for gelato sticks, frozen desserts and mousse.

Finishing and internal surface

Labor has been entirely designed in AISI 304 stainless steel, with an insulation thickness of 80 mm. The internal walls and the bottoms of the refrigerated compartments are made with rounded corners.

Easy to clean

The interior design of the cabinet is designed to make daily cleaning as easy as possible: the racks are completely removable and the gasket easily removable. The drain on the bottom of the tub (1 inch standard size) makes extraordinary cleaning operations easy.

Fan-assisted refrigeration

Fan-assisted static refrigeration for uniform distribution of cold inside the cell, creating the right climate for perfect gelato preservation with a temperature range of -18/-15 °C.

Natural technology and energy efficiency

Natural refrigerant

The use of natural refrigerants R290 and R600a, allows the reduction of CO2 emissions and the reduction of 5-10% of average energy consumption. The sustainable choice for the environment.

Cyclopentane natural insulation

The use of polyurethane foam with cyclopentane in addition to maximizing thermal insulation, allows the reduction of consumption and environmental impact. The thickness of insulation of the shells of 80 mm allows greater structural stability of the refrigerated cabinet and a reduction in heat loss for further energy savings.

Electronic fans

The condensing unit and the evaporating unit are equipped with electronic fans with low noise and mechanical vibrations, allowing a reduction of energy consumption up to 60%. In the case of Labor, the fans are present in the condenser.

Low vibration

Free to work in maximum silence. The Lab collection of refrigerated storage cabinets adopts the most advanced technologies to make the working environment silent and comfortable; the condensing unit is equipped with hermetic compressor and electronic fans with low noise and mechanical vibrations.

Thermal break

The front structure of the compartment includes a perimeter frame coupling the body of the refrigerated cabinet, with thermo- welded joint corners. This design avoids heat loss between the door gasket and the cabinet, ensuring a high thermal break between the interior and exterior of the refrigerated cabinet.

Ergonomics and maintance

Easy access to condensing unit

The condensing unit is accessible thanks to a system of hinges that allow the opening of the casing door, allowing a reduction in service times and facilitating ordinary and extraordinary maintenance operations.

Cooling unit

Each refrigerated cabinet provides for the positioning of the cooling unit, in the external technical compartment above the refrigerated module, independently from the latter.A structure that allows for over 10% more storage space, maximum corrosion protection and easy access for cleaning and maintenance.

Handling equipment

The stainless steel feet are adjustable in height, with a wide range from 115 mm to 175 mm. Suitable for any type of floor, they guarantee the maximum stability of the refrigerated cabinet and the perfect aesthetic alignment between the modules placed side by side. Directional castors with locking brake are available as an optional, to facilitate the movement of the cabinet inside the professional kitchen.

Evaporator protective coating

A protective coating has been applied to the evaporator by means of cataphoresis, which eliminates the risk of possible refrigerant leaks due to corrosion phenomena resulting from the presence of citric acids and/or vinegar in certain types of preserved foods.

Performance

Self closing doors

The doors with automatic return, are equipped with pivot hinges that allow the opening of the door up to 170° with the simultaneous blocking in open position at 90°.

Locking door

The ISA Lab range of refrigerated cabinets features a key lock, which protects the contents of the refrigerator by blocking the door from being opened.

Reversible door

Thanks to the presence of the same fixing interfaces of the pivot hinges, the doors are reversible even in case of post-installation needs. They can have right or left opening, without the need of special accessories or spare parts.

Lighting

In the GE 700 Ultra positive temperature version, lighting is provided by a led courtesy light positioned on the control panel casing, which automatically turns on when the door is opened.

Multiple openings

The decompression valve quickly balances the pressure in the refrigerated compartment, allowing the door to be opened repeatedly and avoiding the formation of condensation as an effect of pressure changes.

Technical Features

Labor Plus

Installation

  • Plug-in

Energy class

  • D

Standard equipment

  • 5 Adjustable grids (530x720 mm) Chromed
  • 5 Pairs of C guides (anti-overturning) GN stainless steel
  • Door lock with key

Product temperature

  • -18 / -15 °C (RS/RV TB)

Refrigerant

  • R290

Refrigeration

  • Static with agitator (RS/RV TB)

Compressor

  • Hermetic

Defrost

  • Manual (RS/RV TB)

Climate class

  • 5 (40 °C / 40% RH)

Opening system

  • Reversible self-closing swing door
  • Left or right configuration

Insulation

  • Cyclopentane 80 mm

Base

  • Height adjustable feet (115 - 175 mm)
  • Swivel casters with brake (optional)

External

  • Stainless steel AISI 304

Inside color

  • Stainless steel AISI 304

Optionals

  • Swivel casters with brake
  • Pair of anti-flip C guides GN stainless steel
  • Adjustable grid (530x720 mm) plastified / chromed

Are you interested in this product?

Energy Label

PRODUCT DETAILSREFRIGERANTHEIGHTLENGHTENERGY LABEL
LaborR29029071Energy label
