GE 1400 Plus Commercial refrigerators | ISA

GE 1400 HE

Upright refrigerated cabinet that combines ergonomics and energy saving with minimal aesthetics
GE 1400 Plus

Are you interested in this product?

GE 1400 HE | ISA

Refrigerated storage at the service of a range of cabinets for professional kitchen in different capacities with single and double doors. Ventilated or static refrigeration and positive or negative temperature. Design for everyday use; 80 mm insulation thickness for greater energy savings and ergonomics designed to ensure comfort in set-up, handling and everyday maintenance. Committed to the environment, refrigerant gases and natural insulation at the heart of performance. Energy saving and respect for the environment are the focus of performance.

Internal setup

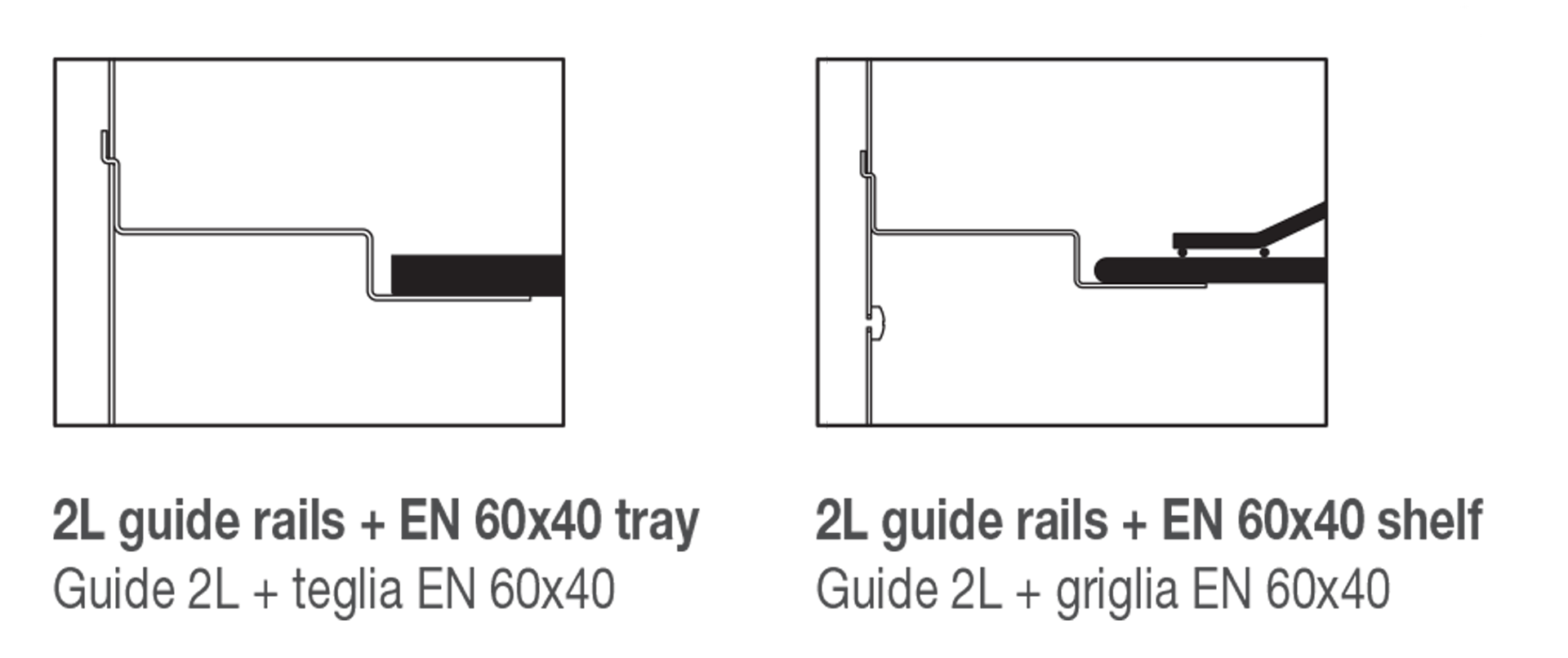

The standard equipment for each door includes 4 stainless steel racks (10 positions - pitch 130 mm) and 3 white plastic- coated GN 2/1 shelves. For GE 700 models, 12 plastic supports with maximun load of 30 Kg per shelf, while for 1400 models, 6 pairs of stainless steel C pairs of guide rails (652 mm) with maximum load of 60 Kg per shelf. GN 2/1, EN 60x40 trays, 2L and C pairs of guide rails are provided as optional accessories.

GE 1400 HE

GE 1400 HE

The essentials

The GE HE range of refrigerated storage cabinets are available with 1 door and 2 doors. With the characteristics that distinguish each model, Evo and Plus are provided with ventilated refrigeration and temperature range -2/+8 °C or -18/-15 °C, the essentials of every professional kitchen.

Finishing and internal surface

They have been realized with different materials to increase the choice of range. GE HE has been designed entirely in AISI 304 stainless steel. The internal walls and the bottoms of the refrigerated compartments are made with rounded corners. The insulation thickness is 80 mm.

Easy to clean

The interior design of the cabinet is designed to make daily cleaning as easy as possible. The interior walls and bottoms of the refrigerated compartments are made with rounded corners. The racks and gasket are completely removable, allowing for better cleaning and space optimization.

GE 1400 HE | ISA

Natural technology and energy efficiency

Natural refrigerant

The use of natural refrigerants R290 and R600a, allows the reduction of CO2 emissions and the reduction of 5-10% of average energy consumption. The sustainable choice for the environment.

Cyclopentane natural insulation

The use of polyurethane foam with cyclopentane in addition to maximizing thermal insulation, allows the reduction of consumption and environmental impact. The thickness of insulation of the shells of 80 mm allows greater structural stability of the refrigerated cabinet and a reduction in heat loss for further energy savings.

Electronic fans

The condensing unit and the evaporating unit are equipped with electronic fans with low noise and mechanical vibrations, allowing a reduction of energy consumption up to 60%. In the case of Labor, the fans are present in the condenser.

Low vibration

Free to work in maximum silence. The Lab collection of refrigerated storage cabinets adopts the most advanced technologies to make the working environment silent and comfortable; the condensing unit is equipped with hermetic compressor and electronic fans with low noise and mechanical vibrations.

Thermal break

The front structure of the compartment includes a perimeter frame coupling the body of the refrigerated cabinet, with thermo- welded joint corners. This design avoids heat loss between the door gasket and the cabinet, ensuring a high thermal break between the interior and exterior of the refrigerated cabinet.

GE 1400 HE | ISA
GE 1400 HE

Ergonomics and maintance

Easy access to condensing unit

The condensing unit is accessible thanks to a system of hinges that allow the opening of the casing door, allowing a reduction in service times and facilitating ordinary and extraordinary maintenance operations.

Cooling unit

Each refrigerated cabinet provides for the positioning of the cooling unit, in the external technical compartment above the refrigerated module, independently from the latter.A structure that allows for over 10% more storage space, maximum corrosion protection and easy access for cleaning and maintenance.

Handling equipment

The stainless steel feet are adjustable in height, with a wide range from 115 mm to 175 mm. Suitable for any type of floor, they guarantee the maximum stability of the refrigerated cabinet and the perfect aesthetic alignment between the modules placed side by side. Directional castors with locking brake are available as an optional, to facilitate the movement of the cabinet inside the professional kitchen.

Evaporator protective coating

A protective coating has been applied to the evaporator by means of cataphoresis, which eliminates the risk of possible refrigerant leaks due to corrosion phenomena resulting from the presence of citric acids and/or vinegar in certain types of preserved foods.


Self closing doors

The doors with automatic return, are equipped with pivot hinges that allow the opening of the door up to 170° with
the simultaneous blocking
in open position at 90°.

Locking door

The ISA Lab range of refrigerated cabinets features a key lock, which protects the contents of the refrigerator by blocking the door from being opened.

Reversible door

Thanks to the presence of the same fixing interfaces of the pivot hinges, the doors are reversible even in case of post-installation needs. They can have right or left opening, without the need of special accessories or spare parts.


In the GE HE positive temperature version, lighting is provided by a led courtesy light positioned on the control panel casing, which automatically turns on when the door is opened.

Multiple openings

The decompression valve quickly balances the pressure in the refrigerated compartment, allowing the door to be opened repeatedly and avoiding the formation of condensation as an effect of pressure changes.

GE 1400 HE | ISA

Technical Features

GE 1400 HE


  • Plug-in

Energy class

  • C (TB)
  • C (TN)

Standard equipment

  • 6 Adjustable grids (530x650 mm) plastified GN 2/1
  • 6 Pair of C guides (antioverturning) GN stainless steel
  • Door lock with key

Product temperature

  • -2/+8 °C
  • -18/-15 °C


  • R290


  • Ventilated


  • Hermetic


  • Hot gas (TB)
  • Off cycle (TN)

Climate class

  • 5 (40 °C / 40% RH)

Opening system

  • Reversible self-closing swing door


  • Cyclopentane 80 mm


  • Height adjustable feet (115 - 175 mm)
  • Swivel casters with brake (optional)


  • Prepainted sheet (Evo)
  • Stainless steel AISI 304 (Plus)


  • Prepainted sheet (Evo)
  • Stainless steel AISI 304 (Plus)


  • Swivel casters with brake
  • Adjustable grid (530x650 mm) GN 2/1 plastic coated / stainless steel
  • Adjustable central grid (540x216 mm) plastic coated / stainless steel
  • Pair of 2L EN guides (60x40 mm) GN 2/1 stainless steel
  • Pair of anti-flip C guides GN stainless steel
  • Kit 4 racks maximum load
  • Trays EN (60x40) - GN 2/1 (530x650x20/40/60/100H mm) stainless steel
  • Basket (530x650x150/300H mm)
  • Stainless steel hook

Are you interested in this product?

Energy Label

Ge 1400 PlusR290209144Energy label
