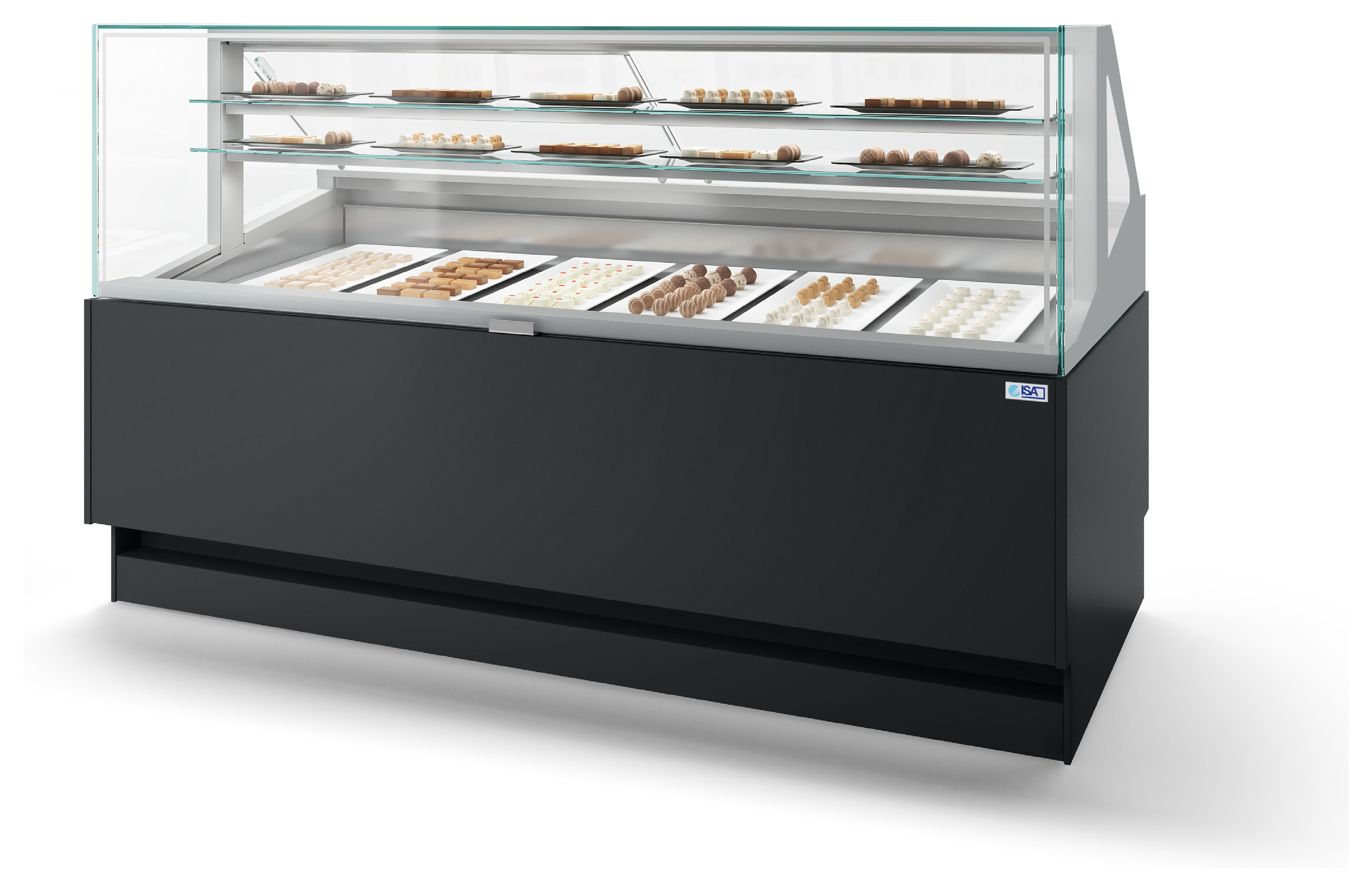

Portofino
Are you interested in this product?

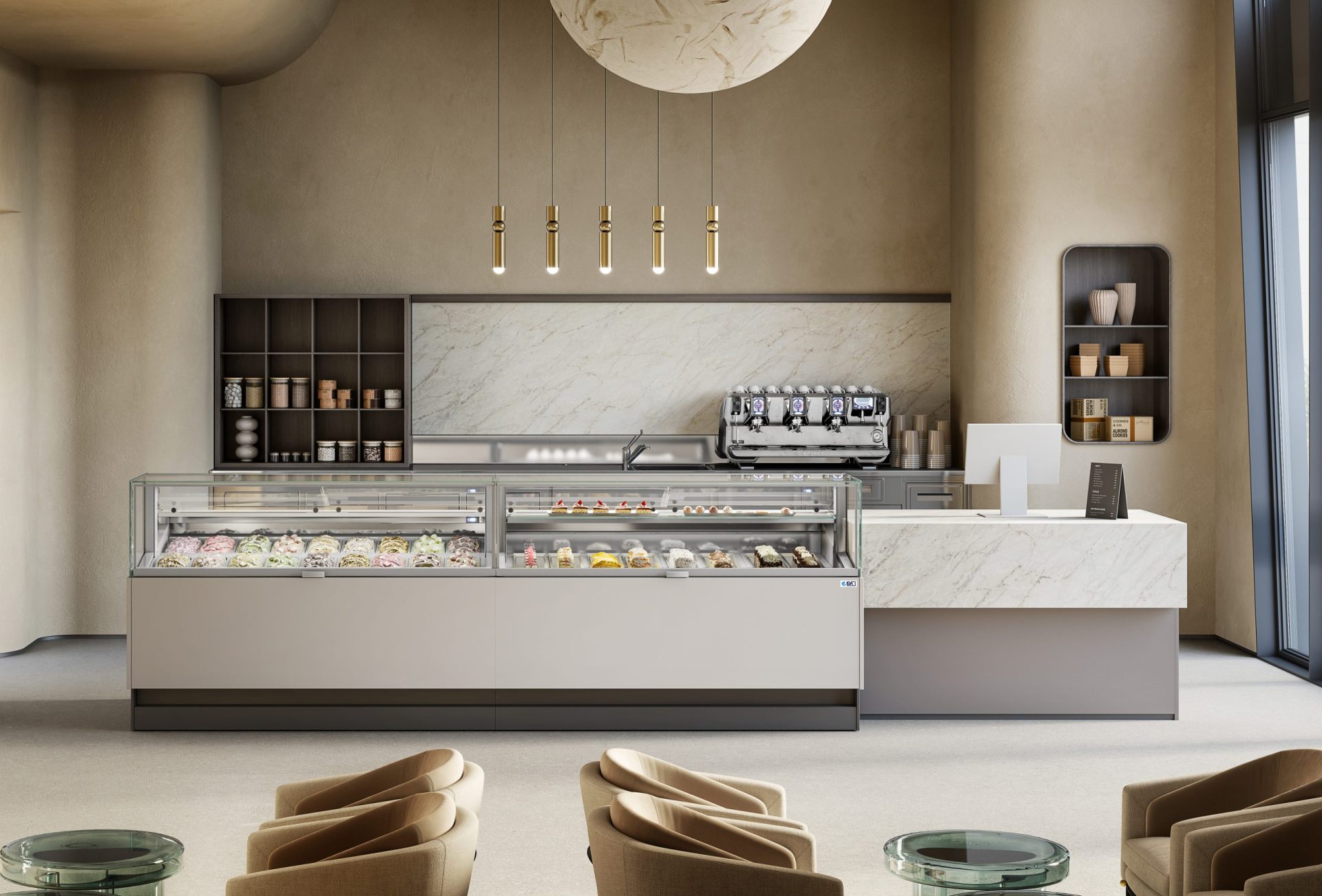

In its combined configuration, the Portofino display case represents the ideal balance between display efficiency and sophisticated design. Characterised by a Glacial White Solid Surface worktop, it offers an extremely hygienic, durable working surface with a bright finish. A versatile and elegant solution, designed to enhance every product and integrate seamlessly into any professional environment.
Maximum ease of cleaning

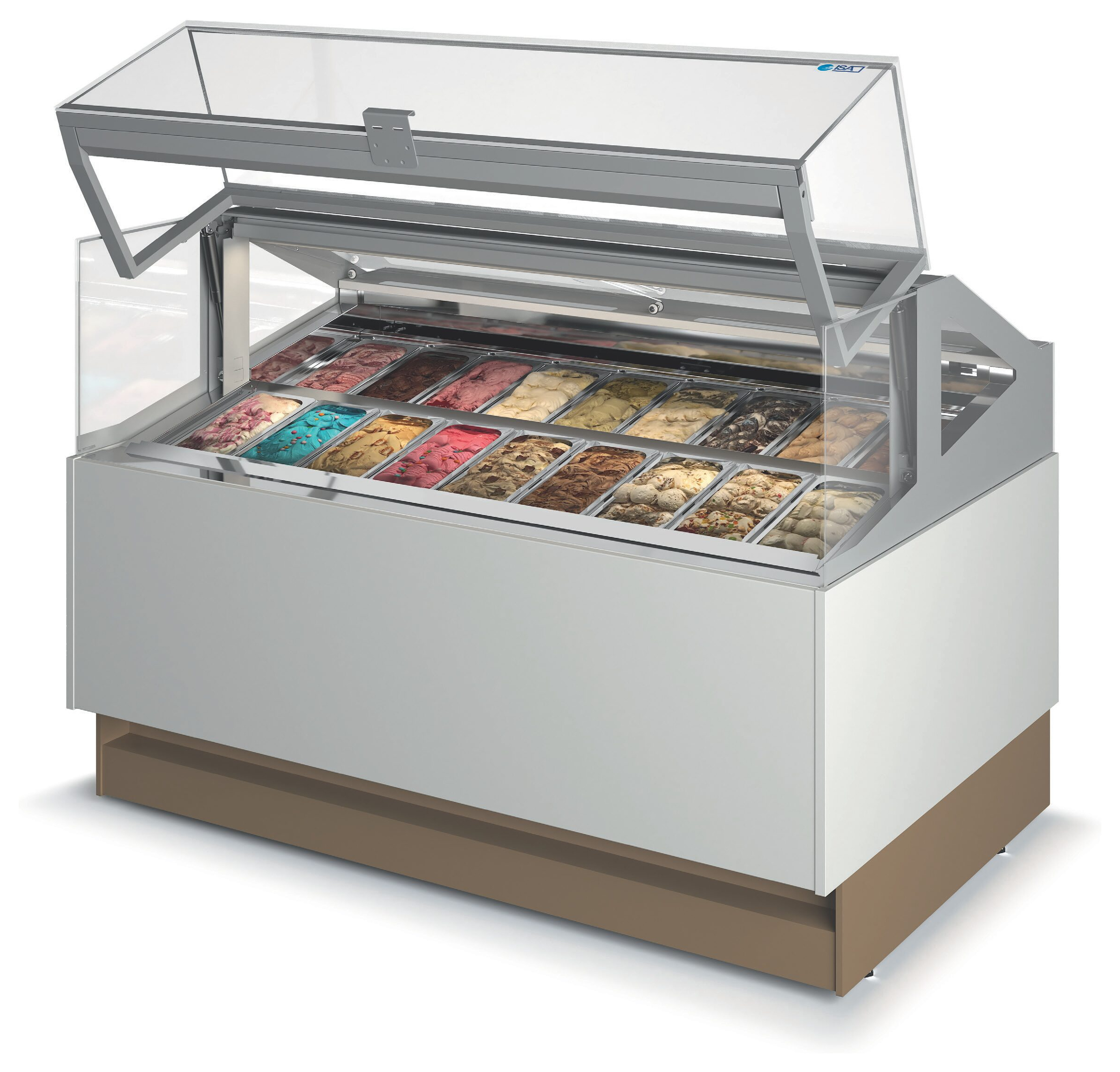

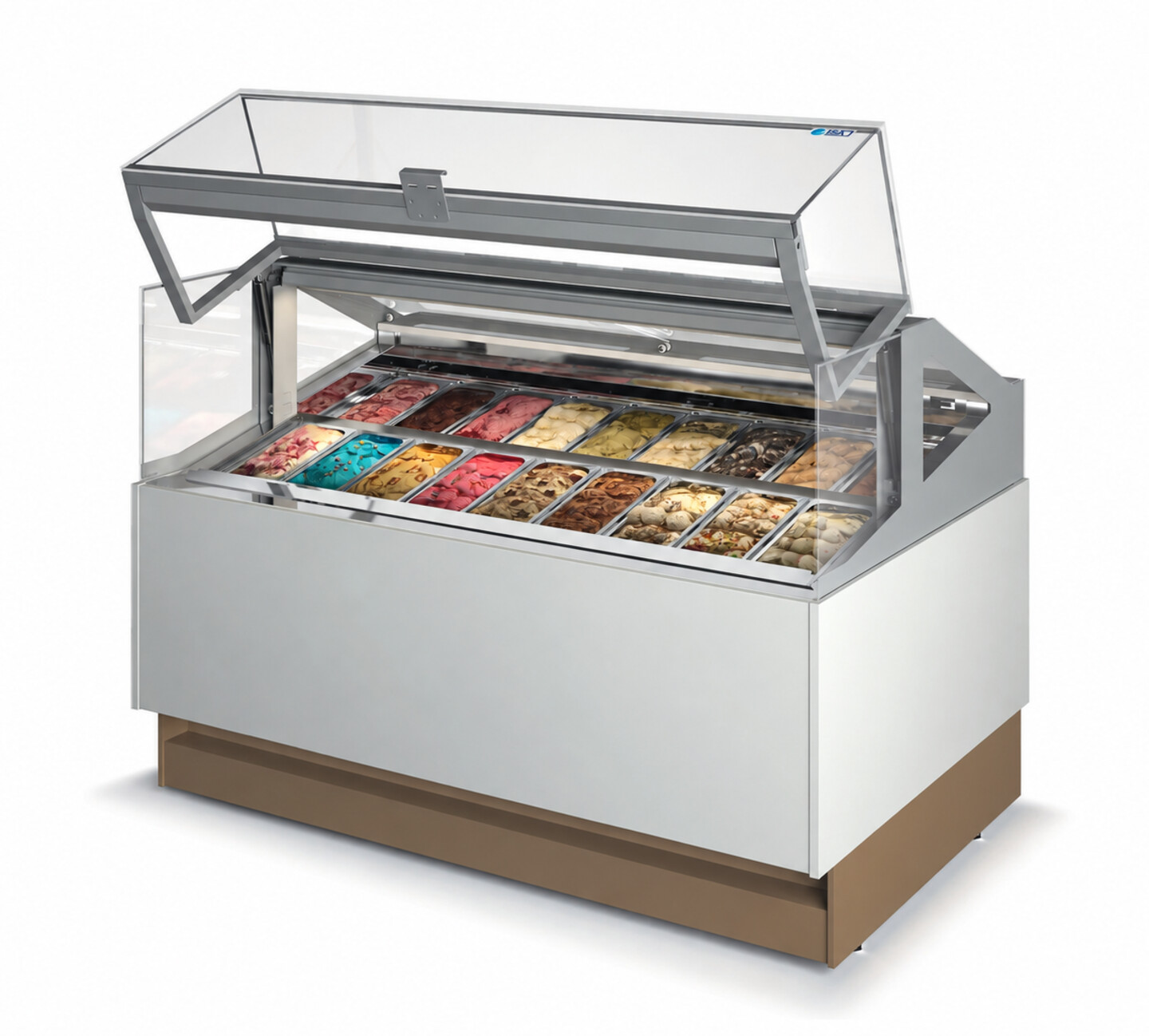

ISA’s patented servo-assisted upward glass opening system. This type of opening, as well as the internal design of the tub, has been designed to make daily cleaning operations as easy as possible.
IAT - ISA Adaptive Technology
Adaptive remote control of the display case included.
Full Mode - Pastry
Complete refrigeration of display area and intermediate shelves. Uniform cooling on all levels. The shelf refrigeration can be activated or excluded via a dedicated control. Maximum control of product storage.
Automatic cleaning
The condenser fans can be reversed on built-in motors. By reversing the air flow, the refrigeration unit remains free of dust accumulation, ensuring that the display case continues to function properly over time.
Oversized condenser
Fitted on the motors with water condensation, it ensures stable and reliable operation of the display case even in the event of a temporary interruption of the water supply. Greater system reliability. Continuous operation and constant performance.

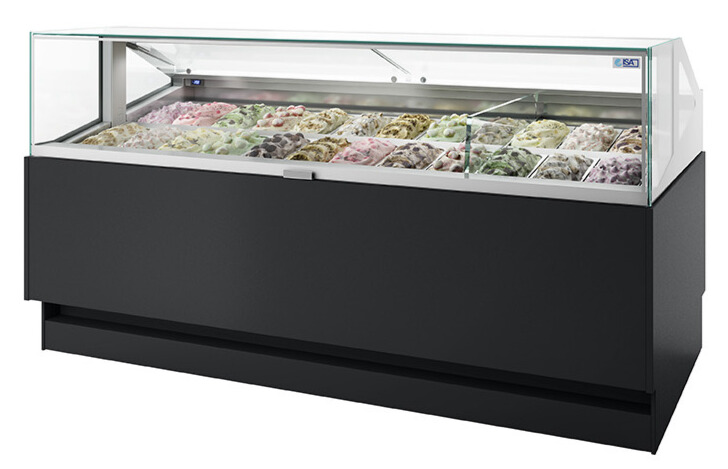

Technical features
Installation
- Remote
- Plug-in

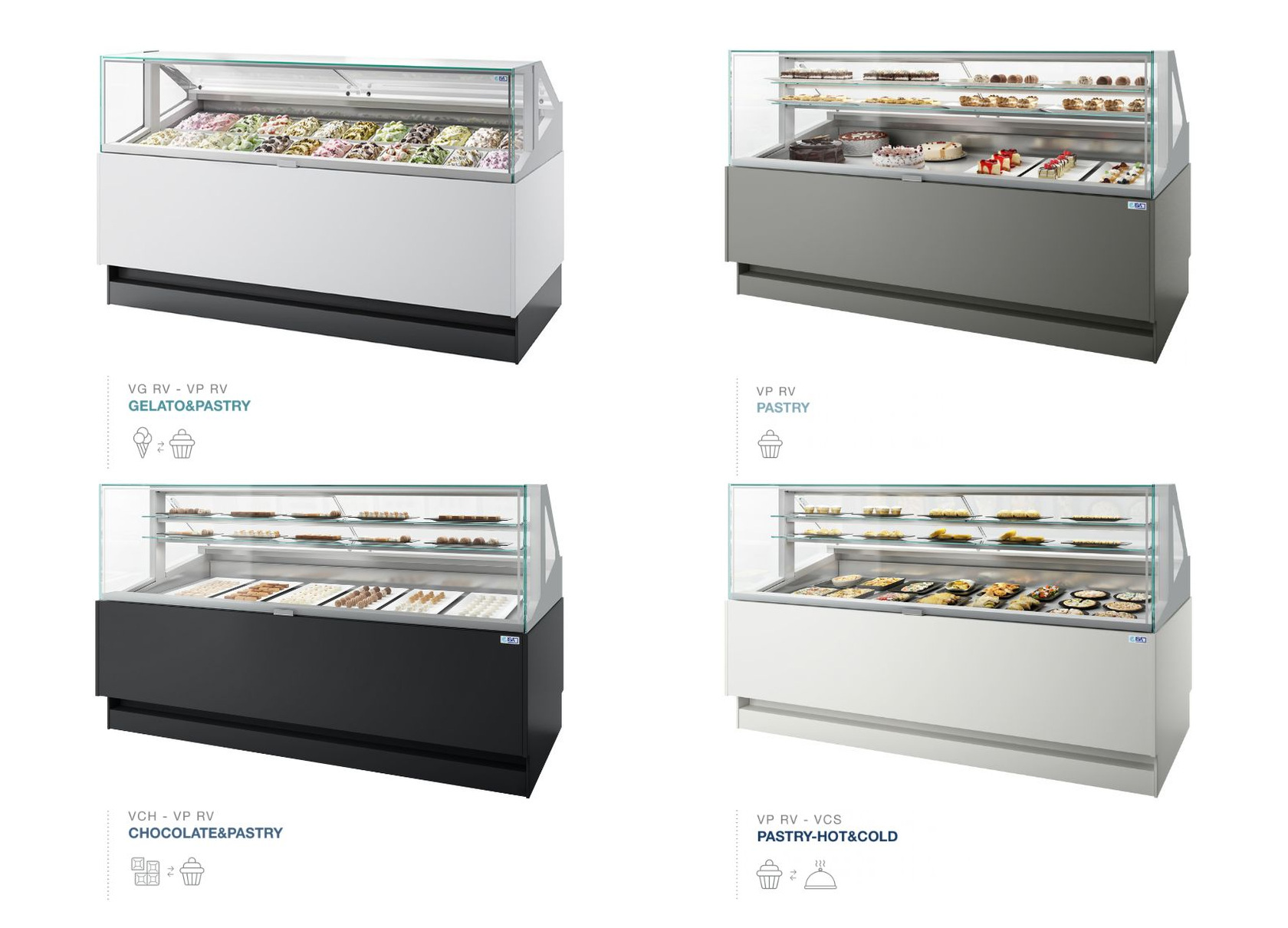

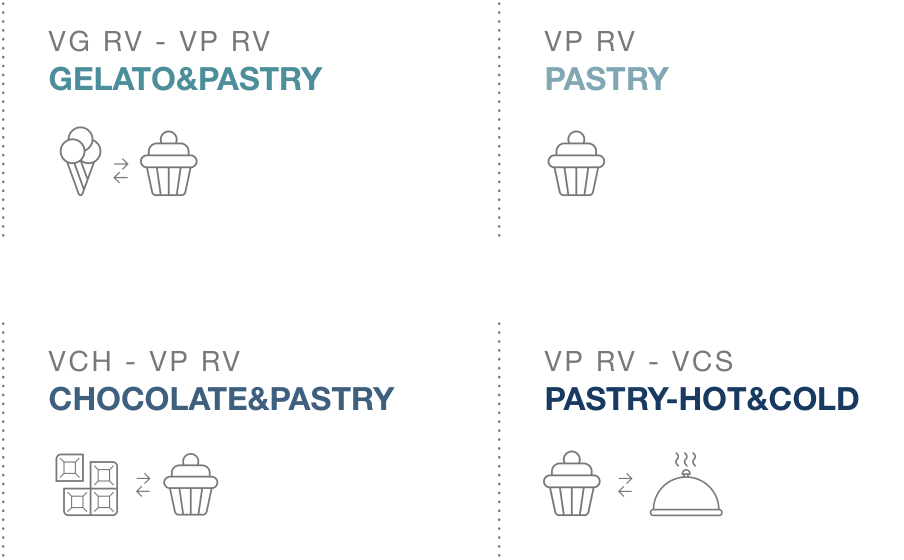

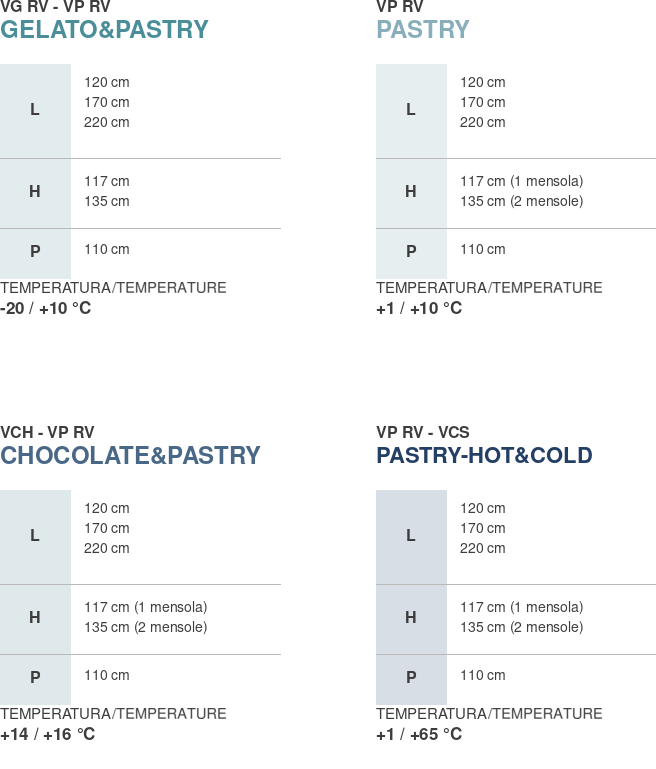

Operating temperature
- -20 / +10 (Gelato&Pastry)
- +1 / +10 (Pastry)
- +14 / +16 (Chocolate&Pastry)
- +1 / +65 (Pastry-Hot&Cold)
Compressor
- Hermetic
- Semi Hermetic
Defrost
- Reverse cycle
- Off cycle
Climate class
- 7 (35 C° / 70% RH)
- 3 (25 C° / 60% RH)
Refrigeration
- Ventilated - Plus
- Ventilated - Plus 1 (optional)
- Ventilated - Plus 2 (optional)
Opening system
- Servo, bottom-up opening system
Doors
- Glass sliding doors
Work top
- Solide surface white
Lighting
- 4000 K (optional)
- Led 5700 K
Equipment handling
- Heigh adjustable feet
- Swivel casters with brake (optional)
